Ever wondered what a Harmonic Drive is and how it truly works?
Known for their precision and compact design, Harmonic Drives are widely used in robotics, aerospace, and high-performance machinery. But what’s really going on inside especially when it comes to how much contact there is between the spline teeth?

In this article, we’ll break down the mechanics of this fascinating gear reducer and explore the unique way it transmits motion and torque.

🔧 What is a Harmonic Drive?

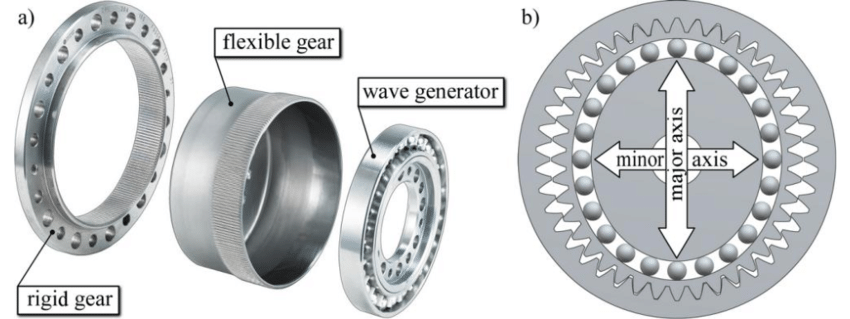

A Harmonic Drive is a unique type of gear reducer composed of three core components: a flexible spline (flexspline), a wave generator, and a rigid outer spline (circular spline).

Compared to traditional gear systems, Harmonic Drives offer significantly higher precision, zero backlash, and a compact design making them ideal for applications where space and accuracy are critical.

Commonly used in robotics, aerospace, medical devices, and industrial automation, these drives are engineered to deliver smooth and repeatable motion in demanding environments.

⚙️ How Does a Harmonic Drive Work?

At the heart of a Harmonic Drive system lies a clever mechanism that uses flexible motion and strategic tooth engagement to achieve exceptional precision. The system consists of three core components: the wave generator, the flexspline, and the circular spline.

The wave generator is an elliptical cam with a bearing fitted over it. When this wave generator is inserted into the Flexspline, which is a thin, flexible, cup shaped gear it forces the flexspline to adopt an elliptical shape. As the wave generator rotates, the widest parts of the ellipse push the teeth of the flexspline outward, causing them to engage with the internal teeth of the circular spline at two opposite points.

Here’s where the precision comes in: the flexspline has typically two fewer teeth than the circular spline. This difference causes a continuous and controlled relative motion between the two components. For example, if the circular spline has 162 teeth and the flexspline has 160, a full rotation of the wave generator results in a two-tooth shift producing a gear reduction ratio of 80:1.

Thanks to this unique configuration, Harmonic Drives achieve:

• High gear ratios in compact sizes
• Zero backlash, which is essential for precision motion control
• Smooth torque transmission, even at low speeds

This operating principle makes Harmonic Drives ideal for high-precision applications such as robotics, aerospace systems, surgical devices, and industrial automation, where repeatability and accuracy are crucial.

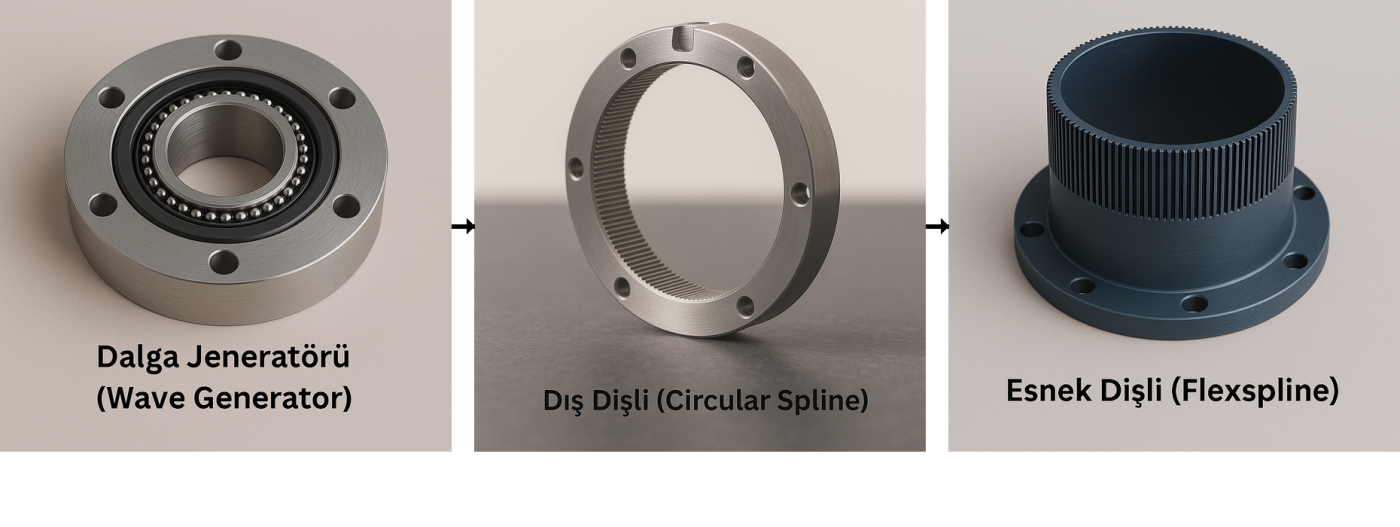

Wave Generator (Dalga Jeneratörü):
An elliptical cam and bearing assembly that deforms the Flexspline. As it rotates, it forces the Flexspline into an oval shape, initiating the controlled tooth engagement that drives the system.

Flexspline (Esnek Dişli):
A thin, cup shaped gear made from elastic material. It flexes around the Wave Generator’s ellipse, transferring motion in a smooth, wave like pattern while maintaining minimal backlash.

Circular Spline (Dış Dişli):
A rigid outer gear with internal teeth, fixed to the housing. It meshes with the Flexspline’s teeth at two opposing points, converting the Flexspline’s dynamic motion into a stable, high precision output.

🧩 Core Components – Wave Generator (The Driving Force Behind the Flex)

The Wave Generator is the input element of a Harmonic Drive and plays a critical role in creating its unique motion. It consists of an elliptical cam surrounded by a flexible bearing, which allows it to transmit rotational motion to the Flexspline in a very specific way.

When the Wave Generator is inserted into the Flexspline, it forces the flexible, cup shaped gear to deform into an elliptical shape. As the generator rotates, this elliptical deformation travels around the inner circumference of the Flexspline. At the widest points of the ellipse, the Flexspline’s teeth are pushed outward into mesh with the Circular Spline’s internal teeth. At the narrower points, the Flexspline teeth disengage.

This continuous deformation causes a smooth, rolling engagement of the teeth allowing for:

🔷 Flexspline: The Flexible Gear Element

The Flexspline is a critical component in Harmonic Drive systems, designed with a thin, cup-shaped body that provides mechanical flexibility. Its unique geometry allows it to deform when acted upon by the wave generator, enabling controlled engagement with the circular spline.

Made from high-strength yet elastic materials, the Flexspline transmits mechanical power with extreme precision and minimal backlash. Unlike traditional rigid gears, the Flexspline can flex and adapt its shape dynamically, which is the key to achieving high gear reduction ratios in compact form factors.

Harmonic gear systems that use the Flexspline are widely employed in fields that demand precise motion control, such as:

🔷 Circular Spline: The Rigid Outer Gear

The Circular Spline is the fixed, rigid component of a Harmonic Drive system, and serves as the outer gear element in the assembly. It features internal teeth that are engaged by the deformable Flexspline as it follows the elliptical motion imposed by the wave generator.

Unlike the Flexspline, the Circular Spline does not deform. It is typically mounted securely to the housing or chassis of the machine, acting as a stable anchor for the entire gear system. One of the defining characteristics of the Circular Spline is that it contains two more teeth than the Flexspline a deliberate design choice that enables harmonic motion and defines the gear reduction ratio.

During operation:

• As the wave generator rotates, it deforms the Flexspline into an elliptical shape.
• The Flexspline’s teeth engage with the Circular Spline’s internal teeth at two opposite points along this ellipse.
• Because of the difference in tooth count, each rotation of the wave generator causes a small relative movement between the two gears, resulting in high precision output motion.

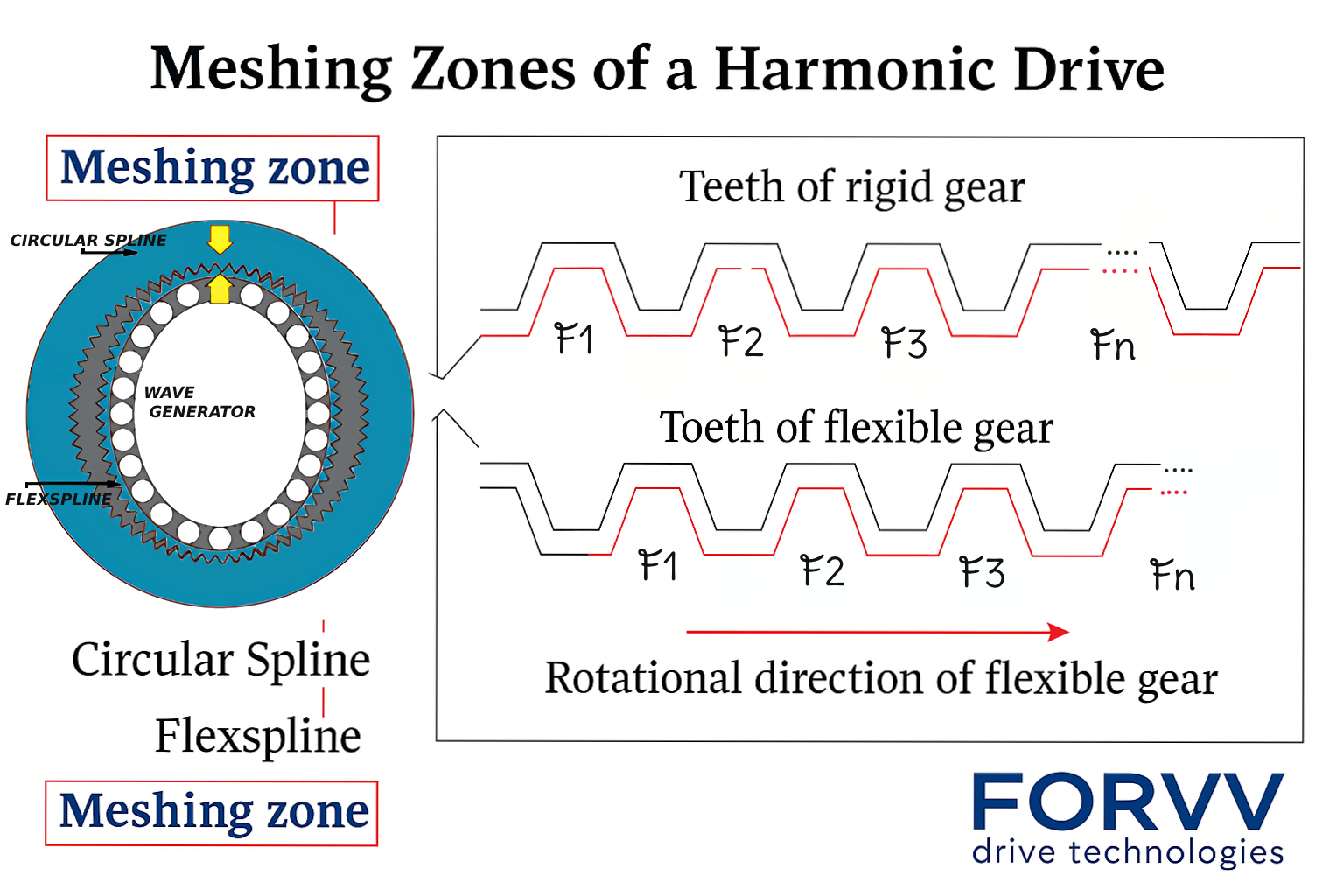

📐 Tooth Engagement / How Many Teeth Are Actually in Contact?

One of the most fascinating features of a Harmonic Drive system is how the teeth engage between the Flexspline and the Circular Spline. Unlike traditional gears, where teeth mesh along a full circumference or in constant rotation, Harmonic Drives utilize a localized, wave like engagement pattern that offers both precision and efficiency.

Here’s how it works:

• As the Wave Generator rotates, it deforms the Flexspline into an elliptical shape.
• At the two widest points of the ellipse, the teeth of the Flexspline fully engage with the Circular Spline’s internal teeth.
• These two regions of contact typically 180° apart contain the majority of tooth engagement in the system.

Depending on the size of the gear, up to 30% of the Flexspline’s teeth can be engaged at any one time, which is significantly higher than in conventional gear mechanisms. This wide area of engagement distributes torque across many teeth simultaneously, reducing localized stress and enabling:

• Higher torque transmission
• Zero backlash
• Increased gear lifespan

For example, in a harmonic drive with a Flexspline of 160 teeth and a Circular Spline of 162 teeth (resulting in an 80:1 gear ratio), two teeth are “skipped” per full rotation due to the intentional difference in tooth count. This controlled mismatch is what allows for precise gear reduction and smooth motion.

🔍 Advantages of Harmonic Drive Systems

Harmonic Drives offer a range of performance benefits that make them a preferred choice in high precision engineering fields such as robotics, aerospace, and automation. Here are some of their standout advantages:

• Near-Zero Backlash
  The flexing motion of the Flexspline ensures tight tooth engagement, resulting in almost no backlash a critical factor for precision motion control.
• High Torque Transmission
  The wide tooth engagement area allows Harmonic Drives to transmit high torque relative to their size, making them suitable for demanding load conditions.
• Compact and Lightweight Design
  With fewer components and a coaxial layout, Harmonic Drives deliver high gear reduction ratios in a much smaller and lighter package than traditional gear systems.
• Smooth and Quiet Operation
  The continuous meshing and wave-based motion reduce vibration and noise, providing ultra smooth performance even at low speeds.
• Exceptional Positioning Accuracy
  Their zero backlash nature and high resolution enable highly repeatable motion, which is essential for applications that demand precise positioning and alignment.

🏭 Where Are Harmonic Drives Used?

Thanks to their precision, compactness, and zero-backlash performance, Harmonic Drives are used in a wide range of advanced engineering applications where space is limited and motion accuracy is critical.

Here are some of the most common use cases:

• Industrial Robotic Arms
  Used in precision assembly, welding, and pick and place systems for repeatable and accurate movement.
• Aerospace and Satellite Systems
  Ideal for actuators and mechanisms in satellites, spacecraft, and aircraft control systems, where reliability and compactness are crucial.
• Camera Positioning and Gimbal Systems
  Provides smooth and precise angular control in pan tilt units for surveillance, broadcasting, and cinematography.
• Medical Robotics
  Used in surgical robots and diagnostic equipment where fine motion control and minimal vibration are essential.

These applications highlight the versatility and reliability of harmonic drive systems in demanding technological environments.
